[SGM Markov Chain]

24 Jul 2024

Introduction

A Markov chain is a mathematical model that describes a system evolving over time among a finite number of states. This model is based on the assumption that the future state of the system depends only on the current state and not on previous states, the so-called Markov property. In the context of financial markets, Markov chains can be used to model transitions between different market conditions, for example, the probability of a price going up after going up, or going down after going down.



Script Description

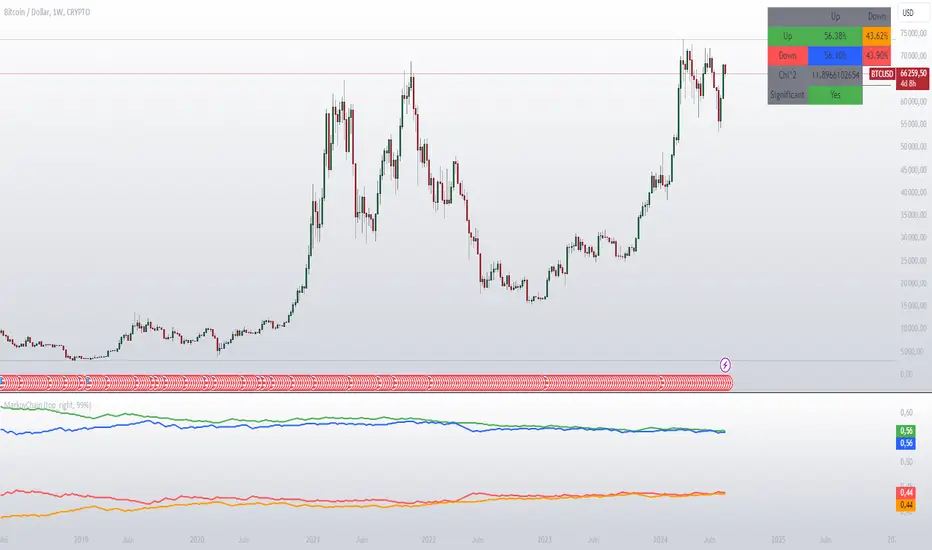

This script uses a Markov chain to calculate closing price transition probabilities across the entire accessible chart. It displays the probabilities of the following transitions:

- Up after Up (HH): Probability that the price rises after going up.
- Down after Down (BB): Probability that the price will go down after going down.
- Up after Down (HB): Probability that the price goes up after going down.
- Down after Up (BH): Probability that the price will go down after going up.

Features

- Color customization: Choose colors for each transition type.
- Table Position: Select the position of the probability display table (top/left, top/right, bottom/left, bottom/right).

24 Jul 2024

Nota Keluaran

correction, probability measured on the total candles for a total probability of 100% (instead of 200% for the previous version)

24 Jul 2024

Nota Keluaran

added chi square test

Chi Square Test
Objective: Evaluate the independence between two categorical variables or the conformity of an observed distribution to an expected distribution.

Types:

Fit: Compare an observed distribution to a theoretical distribution.
Independence: Test the association between two categorical variables.

Methodology :

Calculation of expected frequencies.
Application of the formula:

𝜒2=∑ ((𝑂𝑖−𝐸𝑖)^2 / 𝐸𝑖)
​
Comparison with a critical value to determine significance.



- addition of the choice of level of significance

24 Jul 2024

Nota Keluaran

The script now calculates transition probabilities after an up or down movement, updates the table format to show these probabilities correctly, adjusts chi-square calculations to match the new probabilities, and ensures proper display of significance based on updated chi-square critical values.

24 Jul 2024

Nota Keluaran

option to change table color
