PINE LIBRARY
Obj_XABCD_Harmonic
Telah dikemas kini
Library "Obj_XABCD_Harmonic"

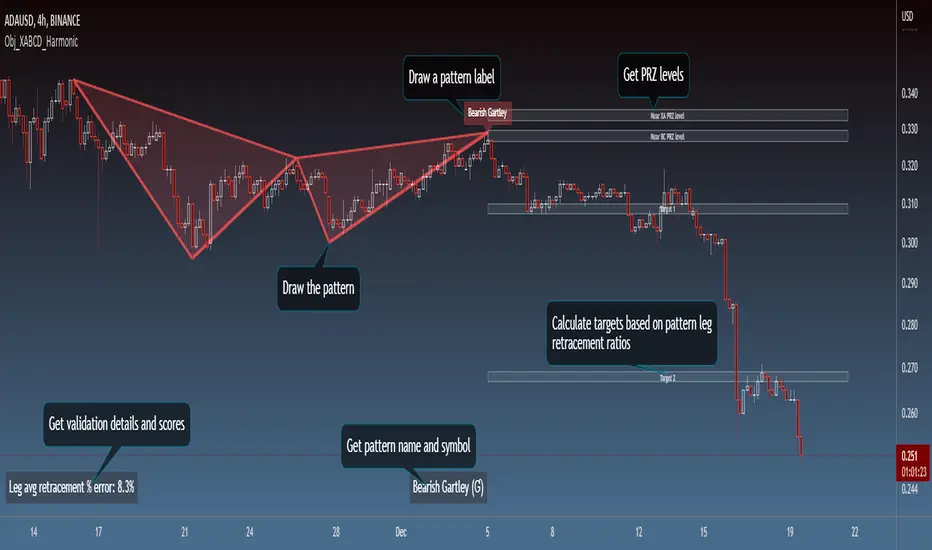

Harmonic XABCD Pattern object and associated methods. Easily validate, draw, and get information about harmonic patterns. See example code at the end of the script for details.
init_params(pct_error, pct_asym, types, w_e, w_p, w_d)
Create a harmonic parameters object (used by xabcd_harmonic object for pattern validation and scoring).
Parameters:
pct_error: Allowed % error of leg retracement ratio versus the defined harmonic ratio
pct_asym: Allowed leg length/period asymmetry % (a leg is considered invalid if it is this % longer or shorter than the average length of the other legs)
types: Array of pattern types to validate (1=Gartley, 2=Bat, 3=Butterfly, 4=Crab, 5=Shark, 6=Cypher)
w_e: Weight of ratio % error (used in score calculation, dft = 1)
w_p: Weight of PRZ confluence (used in score calculation, dft = 1)
w_d: Weight of Point D / PRZ confluence (used in score calculation, dft = 1)
Returns: harmonic_params object instance. It is recommended to store and reuse this object for multiple xabcd_harmonic objects rather than creating new params objects unnecessarily.
init(xX, xY, aX, aY, bX, bY, cX, cY, dX, dY, params, tp, p)
Initialize an xabcd_harmonic object instance.
If the pattern is valid, an xabcd_harmonic object instance is returned. If you want to specify your
own validation and scoring parameters, you can do so by passing a harmonic_params object (params).
Or, if you prefer to do your own validation, you can explicitly pass the harmonic pattern type (tp)
and validation will be skipped. You can also pass in an existing xabcd_harmonic instance if you wish
to re-initialize it (e.g. for re-validation and/or re-scoring).
Parameters:
xX: Point X bar index
xY: Point X price/level
aX: Point A bar index
aY: Point A price/level
bX: Point B bar index
bY: Point B price/level
cX: Point C bar index
cY: Point C price/level
dX: Point D bar index
dY: Point D price/level
params: harmonic_params used to validate and score the pattern. Validation will be skipped if a type (tp) is explicitly passed in.
tp: Pattern type
p: xabcd_harmonic object instance to initialize (optional, for re-validation/re-scoring)
Returns: xabcd_harmonic object instance if a valid harmonic, else na
get_name(p)
Get the pattern name
Parameters:
p: Instance of xabcd_harmonic object
Returns: Pattern name (string)
get_symbol(p)
Get the pattern symbol
Parameters:
p: Instance of xabcd_harmonic object
Returns: Pattern symbol (1 byte string)
get_pid(p)
Get the Pattern ID. Patterns of the same type with the same coordinates will have the same Pattern ID.
Parameters:
p: Instance of xabcd_harmonic object
Returns: Pattern ID (string)
set_target(p, target, target_lvl, calc_target)
Set value for a target. Use the calc_target parameter to automatically calculate the target for a specific harmonic ratio.
Parameters:
p: Instance of xabcd_harmonic object
target: Target (1 or 2)
target_lvl: Target price/level (required if calc_target is not specified)
calc_target: Target to auto calculate (required if target is not specified)
Options: [".382 AD", ".5 AD", ".618 AD", "1.272 AD", "1.618 AD"
".382 XA", ".5 XA" ,".618 XA", "1.272 XA", "1.618 XA",
".382 CD", ".5 CD", ".618 CD", "1.272 CD", "1.618 CD",
"A", "B", "C"]
Returns: Target price/level (float)
erase_pattern(p)
Erase the pattern
Parameters:
p: Instance of xabcd_harmonic object
Returns: p
draw_pattern(p)
Draw the pattern
Parameters:
p: Instance of xabcd_harmonic object
Returns: Pattern lines
[l1,l2,l3,l4,l5,l6]
erase_label(p)
Erase the pattern label
Parameters:
p: Instance of xabcd_harmonic object
Returns: p
draw_label(p, txt, tooltip, clr, txt_clr)
Draw the pattern label. Default text is the pattern name.
Parameters:
p: Instance of xabcd_harmonic object
txt: Label text
tooltip: Tooltip text
clr: Label color
txt_clr: Text color
Returns: Label
harmonic_params
Validation and scoring parameters for a Harmonic Pattern object (xabcd_harmonic)
Fields:
pct_error: Allowed % error of leg retracement ratio versus the defined harmonic ratio
pct_asym
types
w_e
w_p
w_d
xabcd_harmonic
Harmonic Pattern object
Fields:
bull: Bullish pattern flag
tp
xX
xY
aX
aY
bX
bY
cX
cY
dX
dY
r_xb
re_xb
r_ac
re_ac
r_bd
re_bd
r_xd
re_xd
score
score_eAvg
score_prz
score_eD
prz_bN
prz_bF
prz_xN
prz_xF
t1Hit: Target 1 flag
t1
t2Hit
t2
sHit: Stop flag
stop: Stop level
entry: Entry level
eHit
eX
eY
pLines
pLabel
pid
params
Harmonic XABCD Pattern object and associated methods. Easily validate, draw, and get information about harmonic patterns. See example code at the end of the script for details.
init_params(pct_error, pct_asym, types, w_e, w_p, w_d)
Create a harmonic parameters object (used by xabcd_harmonic object for pattern validation and scoring).
Parameters:
pct_error: Allowed % error of leg retracement ratio versus the defined harmonic ratio
pct_asym: Allowed leg length/period asymmetry % (a leg is considered invalid if it is this % longer or shorter than the average length of the other legs)
types: Array of pattern types to validate (1=Gartley, 2=Bat, 3=Butterfly, 4=Crab, 5=Shark, 6=Cypher)
w_e: Weight of ratio % error (used in score calculation, dft = 1)
w_p: Weight of PRZ confluence (used in score calculation, dft = 1)
w_d: Weight of Point D / PRZ confluence (used in score calculation, dft = 1)
Returns: harmonic_params object instance. It is recommended to store and reuse this object for multiple xabcd_harmonic objects rather than creating new params objects unnecessarily.
init(xX, xY, aX, aY, bX, bY, cX, cY, dX, dY, params, tp, p)
Initialize an xabcd_harmonic object instance.
If the pattern is valid, an xabcd_harmonic object instance is returned. If you want to specify your
own validation and scoring parameters, you can do so by passing a harmonic_params object (params).
Or, if you prefer to do your own validation, you can explicitly pass the harmonic pattern type (tp)
and validation will be skipped. You can also pass in an existing xabcd_harmonic instance if you wish
to re-initialize it (e.g. for re-validation and/or re-scoring).
Parameters:
xX: Point X bar index
xY: Point X price/level
aX: Point A bar index
aY: Point A price/level
bX: Point B bar index
bY: Point B price/level
cX: Point C bar index
cY: Point C price/level
dX: Point D bar index
dY: Point D price/level
params: harmonic_params used to validate and score the pattern. Validation will be skipped if a type (tp) is explicitly passed in.
tp: Pattern type
p: xabcd_harmonic object instance to initialize (optional, for re-validation/re-scoring)
Returns: xabcd_harmonic object instance if a valid harmonic, else na
get_name(p)
Get the pattern name
Parameters:
p: Instance of xabcd_harmonic object
Returns: Pattern name (string)
get_symbol(p)
Get the pattern symbol
Parameters:
p: Instance of xabcd_harmonic object
Returns: Pattern symbol (1 byte string)
get_pid(p)
Get the Pattern ID. Patterns of the same type with the same coordinates will have the same Pattern ID.
Parameters:
p: Instance of xabcd_harmonic object
Returns: Pattern ID (string)
set_target(p, target, target_lvl, calc_target)
Set value for a target. Use the calc_target parameter to automatically calculate the target for a specific harmonic ratio.
Parameters:
p: Instance of xabcd_harmonic object
target: Target (1 or 2)
target_lvl: Target price/level (required if calc_target is not specified)
calc_target: Target to auto calculate (required if target is not specified)
Options: [".382 AD", ".5 AD", ".618 AD", "1.272 AD", "1.618 AD"
".382 XA", ".5 XA" ,".618 XA", "1.272 XA", "1.618 XA",
".382 CD", ".5 CD", ".618 CD", "1.272 CD", "1.618 CD",
"A", "B", "C"]
Returns: Target price/level (float)
erase_pattern(p)
Erase the pattern
Parameters:
p: Instance of xabcd_harmonic object
Returns: p
draw_pattern(p)
Draw the pattern
Parameters:
p: Instance of xabcd_harmonic object
Returns: Pattern lines
[l1,l2,l3,l4,l5,l6]
erase_label(p)
Erase the pattern label
Parameters:
p: Instance of xabcd_harmonic object
Returns: p
draw_label(p, txt, tooltip, clr, txt_clr)
Draw the pattern label. Default text is the pattern name.
Parameters:
p: Instance of xabcd_harmonic object
txt: Label text
tooltip: Tooltip text
clr: Label color
txt_clr: Text color
Returns: Label
harmonic_params
Validation and scoring parameters for a Harmonic Pattern object (xabcd_harmonic)
Fields:
pct_error: Allowed % error of leg retracement ratio versus the defined harmonic ratio
pct_asym
types
w_e
w_p
w_d
xabcd_harmonic
Harmonic Pattern object
Fields:
bull: Bullish pattern flag
tp
xX
xY
aX
aY
bX
bY
cX
cY
dX
dY
r_xb
re_xb
r_ac
re_ac
r_bd
re_bd
r_xd
re_xd
score
score_eAvg
score_prz
score_eD
prz_bN
prz_bF
prz_xN
prz_xF
t1Hit: Target 1 flag
t1
t2Hit
t2
sHit: Stop flag
stop: Stop level
entry: Entry level
eHit
eX
eY
pLines
pLabel
pid
params
Nota Keluaran
v2Fixed validation of incomplete patterns (i.e. when calling init() with no Point D coordinates)
Nota Keluaran
v3Delete existing drawings on init()
Nota Keluaran
v4Updated:
xabcd_harmonic
Harmonic Pattern object
Fields:
bull: Bullish pattern flag
tp
xX
xY
aX
aY
bX
bY
cX
cY
dX
dY
r_xb
re_xb
r_ac
re_ac
r_bd
re_bd
r_xd
re_xd
score
score_eAvg
score_prz
score_eD
prz_bN
prz_bF
prz_xN
prz_xF
t1Hit: Target 1 flag
t1
t2Hit
t2
sHit: Stop flag
stop: Stop level
entry: Entry level
eHit
eX
eY
invalid_d
pLines
pLabel
pid
params
Nota Keluaran
v5Nota Keluaran
v6Updated to use point, leg, and pattern objects.
Updated:
init(pattern, params, tp, p)
Initialize an xabcd_harmonic object instance from a given pattern
If the pattern is valid, an xabcd_harmonic object instance is returned. If you want to specify your
own validation and scoring parameters, you can do so by passing a harmonic_params object (params).
Or, if you prefer to do your own validation, you can explicitly pass the harmonic pattern type (tp)
and validation will be skipped. You can also pass in an existing xabcd_harmonic instance if you wish
to re-initialize it (e.g. for re-validation and/or re-scoring).
Parameters:
pattern: Pattern
params: harmonic_params used to validate and score the pattern. Validation will be skipped if a type (tp) is explicitly passed in.
tp: Pattern type
p: xabcd_harmonic object instance to initialize (optional, for re-validation/re-scoring)
Returns: xabcd_harmonic object instance if a valid harmonic, else na
xabcd_harmonic
Harmonic Pattern object
Fields:
bull: Bullish pattern flag
tp
x
a
b
c
d
r_xb
re_xb
r_ac
re_ac
r_bd
re_bd
r_xd
re_xd
score
score_eAvg
score_prz
score_eD
prz_bN
prz_bF
prz_xN
prz_xF
t1Hit: Target 1 flag
t1
t2Hit
t2
sHit: Stop flag
stop: Stop level
entry: Entry level
eHit
e
invalid_d
pLines
pLabel
pid
params
Nota Keluaran
v7Fixed bug when calling init with point D = na
Nota Keluaran
v8Initialize point e on init()
Nota Keluaran
v9Don't overwrite entry point when initializing an existing pattern
Nota Keluaran
v10Perpustakaan Pine
