Auto Harmonic Patterns

9 Jul 2021

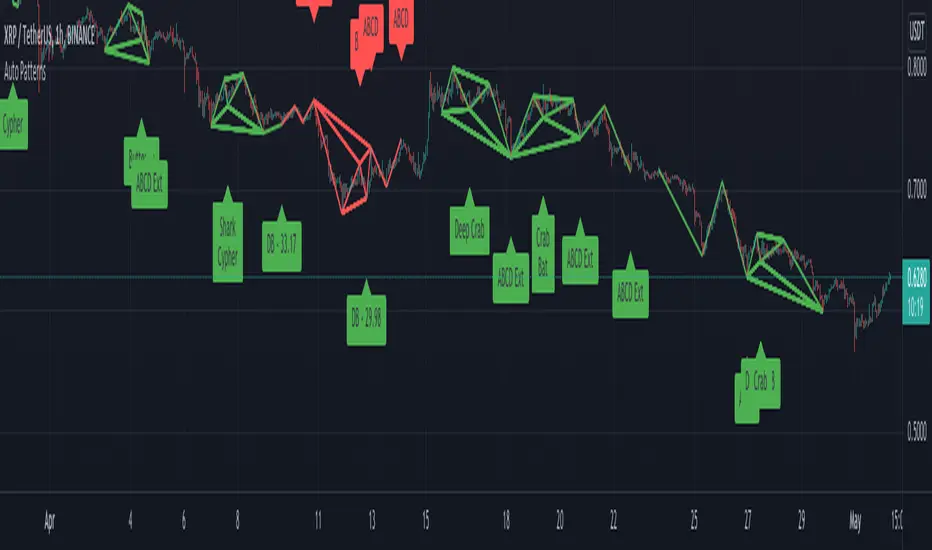

This is my first attempt on plotting harmonic patterns based on zigzag. Initial version is still primitive and might need lot of time to mature into more formidable one. Will try to explain entire logic in the description. Please feel free to correct me if my understanding of any pattern and underlying logic is incorrect.

In the initial version,

• Only immediate high lows of pivots are considered for calculation of patterns.

• In case of ABCD Types, only one is shown at a time. Hence, disabling certain ABCD pattern types may result in different numbers.

• Logic for double top/bottom is taken from previous script - Double top/bottom Ultimate. Though logic of confirmation and invalidation is not included

• All other patterns which involve 4+ lines can coexist and often shown together.

• Smaller timeframes may give error due to some pine limitations.

• Error percent parameter is used for allowing minor deviation from the standard ratios.


Logical ratios of patterns are coded as below:

Notations:

• Lines XABCD forms the pattern in all cases. (OXABCD in case of Three drives)

• abc = BC retacement of AB, xab = AB retracement of XA and so on


ABCD Classic

• 0.618 <= abc <= 0.786

• 1.272 <= bcd <= 1.618


AB=CD

• Price difference between AB and CD are equal

• Time difference between AB and CD are equal


ABCD Extension

• 0.618 <= abc <= 0.786

• 1.272 <= AD/BC (price) <= 1.618


Gartley

• xab = 0.618

• 0.382 <= abc <= 0.886

• 1.272 <= bcd <= 1.618 OR xad = 0.786


Crab

• 0.382 <= xab <= 0.618

• 0.382 <= abc <= 0.886

• 2.24 <= bcd <= 3.618 OR xad = 1.618


Deep Crab

• xab = 0.886

• 0.382 <= abc <= 0.886

• 2.0 <= bcd <= 3.618 OR xad = 1.618


Bat

• 0.382 <= xab <= 0.50

• 0.382 <= abc <= 0.886

• 1.618 <= bcd <= 2.618 OR xad = 0.886


Butterfly

• xab = 0.786

• 0.382 <= abc <= 0.886

• 1.618 <= bcd <= 2.618 OR 1.272 <= xad <= 2.618


Shark

• xab = 0.786

• 1.13 <= abc <= 1.618

• 1.618 <= bcd <= 2.24 OR 0.886 <= xad <= 1.13


Cypher

• 0.382 <= xab <= 0.618

• 1.13 <= abc <= 1.414

• 1.272 <= bcd <= 2.0 OR xad = 0.786


Three Drives

• oxa = 0.618

• 1.27 <= xab <= 1.618

• abc = 0.618

• 1.27 <= bcd <= 1.618


5-0

• 1.13 <= xab <= 1.618

• 1.618 <= abc <= 2.24

• bcd = 0.5


22 Jul 2021

Nota Keluaran

• Removed deviation threshold and disable stats on load. (Can be enabled in settings)

• Default length is set to 5


2 Mei 2022

Nota Keluaran

Convert to pine 5

2 Mei 2022

Nota Keluaran

Update tags
