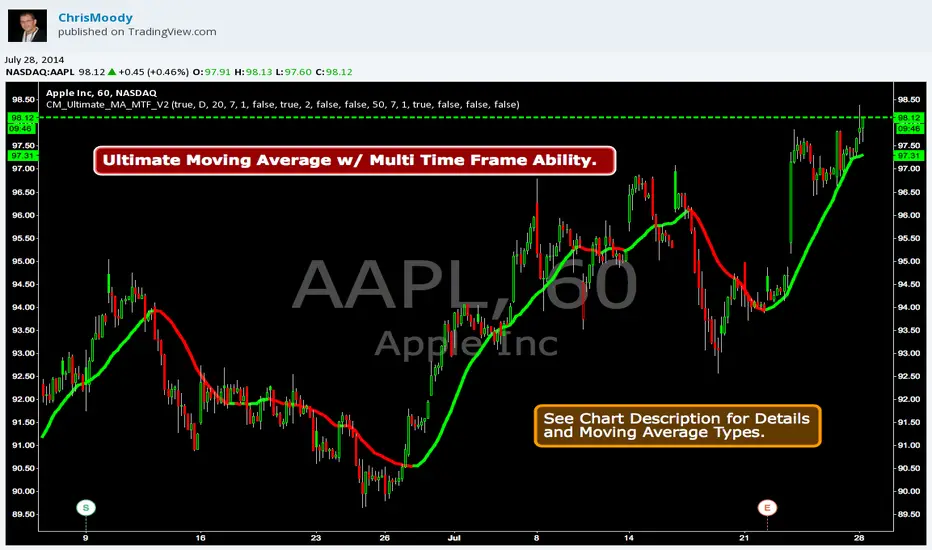

CM_Ultimate_MA_MTF_V2 - Added Tilson T3
Defaults to Current Timeframe on Chart.
Ability to Plot 2nd Moving Average.
Ability to set Moving Averages to Custom Chart TimeFrame. Example Daily Ma on 60 Minute chart. Many Different Options from Weekly to 1 Minute.
Ability to Plot Cross where Moving Averages Cross (If using 2nd Moving Average).
Ability to Plot Highlight Bars when Price Crosses 1st Moving Average, or 2nd MA.
Moving Averages Supported in Inputs Tab
SMA - Simple Moving Average
EMA - Exponential Moving Average
WMA - Weighted Moving Average
HullMA - Hull Moving Average
VWMA - Volume Weighted Moving Average
RMA - Moving Average used in RSI - Similar to EMA
TEMA - Triple Exponential Moving Average
Tilson T3 - Tilson T3 Moving Average
Defaults to Current Timeframe on Chart.
Ability to Plot 2nd Moving Average.
Ability to set Moving Averages to Custom Chart TimeFrame. Example Daily Ma on 60 Minute chart. Many Different Options from Weekly to 1 Minute.
Ability to Plot Cross where Moving Averages Cross (If using 2nd Moving Average).
Ability to Plot Highlight Bars when Price Crosses 1st Moving Average, or 2nd MA.
Moving Averages Supported in Inputs Tab
SMA - Simple Moving Average
EMA - Exponential Moving Average
WMA - Weighted Moving Average
HullMA - Hull Moving Average
VWMA - Volume Weighted Moving Average
RMA - Moving Average used in RSI - Similar to EMA
TEMA - Triple Exponential Moving Average
Tilson T3 - Tilson T3 Moving Average
Coming Soon: www.ChrisMoodyTrading.com
//Created by user ChrisMoody 4-24-2014...Updated 7/28/2014 added Tilson T3 //Modified on 5-5-14 for 4apprentice08 with Optional BarColor based on Price Crossing MA #1, or #2 //Modified on 7-25-2014 to Add in Tilson T3 //Plots The Majority of Moving Averages //Defaults to Current Chart Time Frame --- But Can Be Changed to Higher Or Lower Time Frames //2nd MA Capability with Show Crosses Feature study(title="CM_Ultimate_MA_MTF_V2", shorttitle="CM_Ultimate_MA_MTF_V2", overlay=true) //inputs src = close useCurrentRes = input(true, title="Use Current Chart Resolution?") resCustom = input(title="Use Different Timeframe? Uncheck Box Above", type=resolution, defval="D") len = input(20, title="Moving Average Length - LookBack Period") //periodT3 = input(defval=7, title="Tilson T3 Period", minval=1) factorT3 = input(defval=7, title="Tilson T3 Factor - *.10 - so 7 = .7 etc.", minval=0) atype = input(1,minval=1,maxval=8,title="1=SMA, 2=EMA, 3=WMA, 4=HullMA, 5=VWMA, 6=RMA, 7=TEMA, 8=Tilson T3") spc=input(false, title="Show Price Crossing 1st Mov Avg - Highlight Bar?") cc = input(true,title="Change Color Based On Direction?") smoothe = input(2, minval=1, maxval=10, title="Color Smoothing - Setting 1 = No Smoothing") doma2 = input(false, title="Optional 2nd Moving Average") spc2=input(false, title="Show Price Crossing 2nd Mov Avg?") len2 = input(50, title="Moving Average Length - Optional 2nd MA") sfactorT3 = input(defval=7, title="Tilson T3 Factor - *.10 - so 7 = .7 etc.", minval=0) atype2 = input(1,minval=1,maxval=8,title="1=SMA, 2=EMA, 3=WMA, 4=HullMA, 5=VWMA, 6=RMA, 7=TEMA, 8=Tilson T3") cc2 = input(true,title="Change Color Based On Direction 2nd MA?") warn = input(false, title="***You Can Turn On The Show Dots Parameter Below Without Plotting 2nd MA to See Crosses***") warn2 = input(false, title="***If Using Cross Feature W/O Plotting 2ndMA - Make Sure 2ndMA Parameters are Set Correctly***") sd = input(false, title="Show Dots on Cross of Both MA's") res = useCurrentRes ? period : resCustom //hull ma definition hullma = wma(2*wma(src, len/2)-wma(src, len), round(sqrt(len))) //TEMA definition ema1 = ema(src, len) ema2 = ema(ema1, len) ema3 = ema(ema2, len) tema = 3 * (ema1 - ema2) + ema3 //Tilson T3 factor = factorT3 *.10 gd(src, len, factor) => ema(src, len) * (1 + factor) - ema(ema(src, len), len) * factor t3(src, len, factor) => gd(gd(gd(src, len, factor), len, factor), len, factor) tilT3 = t3(src, len, factor) avg = atype == 1 ? sma(src,len) : atype == 2 ? ema(src,len) : atype == 3 ? wma(src,len) : atype == 4 ? hullma : atype == 5 ? vwma(src, len) : atype == 6 ? rma(src,len) : atype == 7 ? 3 * (ema1 - ema2) + ema3 : tilT3 //2nd Ma - hull ma definition hullma2 = wma(2*wma(src, len2/2)-wma(src, len2), round(sqrt(len2))) //2nd MA TEMA definition sema1 = ema(src, len2) sema2 = ema(sema1, len2) sema3 = ema(sema2, len2) stema = 3 * (sema1 - sema2) + sema3 //2nd MA Tilson T3 sfactor = sfactorT3 *.10 sgd(src, len2, sfactor) => ema(src, len2) * (1 + sfactor) - ema(ema(src, len2), len2) * sfactor st3(src, len2, sfactor) => sgd(sgd(gd(src, len2, sfactor), len2, sfactor), len2, sfactor) stilT3 = st3(src, len2, sfactor) avg2 = atype2 == 1 ? sma(src,len2) : atype2 == 2 ? ema(src,len2) : atype2 == 3 ? wma(src,len2) : atype2 == 4 ? hullma2 : atype2 == 5 ? vwma(src, len2) : atype2 == 6 ? rma(src,len2) : atype2 == 7 ? 3 * (ema1 - ema2) + ema3 : stilT3 out = avg out_two = avg2 out1 = security(tickerid, res, out) out2 = security(tickerid, res, out_two) //Formula for Price Crossing Moving Average #1 cr_up = open < out1 and close > out1 cr_Down = open > out1 and close < out1 //Formula for Price Crossing Moving Average #2 cr_up2 = open < out2 and close > out2 cr_Down2 = open > out2 and close < out2 //barcolor Criteria for Price Crossing Moving Average #1 iscrossUp() => cr_up iscrossDown() => cr_Down //barcolor Criteria for Price Crossing Moving Average #2 iscrossUp2() => cr_up2 iscrossDown2() => cr_Down2 ma_up = out1 >= out1[smoothe] ma_down = out1 < out1[smoothe] col = cc ? ma_up ? lime : ma_down ? red : aqua : aqua col2 = cc2 ? ma_up ? lime : ma_down ? red : aqua : white circleYPosition = out2 plot(out1, title="Multi-Timeframe Moving Avg", style=line, linewidth=4, color = col) plot(doma2 and out2 ? out2 : na, title="2nd Multi-TimeFrame Moving Average", style=circles, linewidth=4, color=col2) plot(sd and cross(out1, out2) ? circleYPosition : na,style=cross, linewidth=15, color=aqua) //barcolor Plot for Price Crossing Moving Average #1 barcolor(spc and iscrossUp() ? (iscrossUp() ? yellow : na) : na) barcolor(spc and iscrossDown() ? (iscrossDown() ? yellow : na) : na) //barcolor Plot for Price Crossing Moving Average #2 barcolor(spc2 and iscrossUp2() ? (iscrossUp2() ? yellow : na) : na) barcolor(spc2 and iscrossDown2() ? (iscrossDown2() ? yellow : na) : na)
