Fractal Timeframe Collision Node [MarkitTick]💡 The financial markets operate across multiple interacting timeframes, creating complex structural geometries that cannot be accurately analyzed through a single, isolated lens. The tool presented here acts as a comprehensive multi-timeframe aggregation engine, designed to isolate highly significant structural support and resistance clusters. By evaluating pivot points across four distinct time spans and merging them based on volatility-adjusted proximity, this system identifies high-probability reaction zones where structural exhaustion is most likely to occur. It is built strictly for the modern Pine Script environment, utilizing an entirely non-repainting architecture that respects the highest standards of data integrity and execution logic.
● ✨ Originality and Utility
Standard pivot or support/resistance scripts typically plot historical swing highs and lows independently. This creates chart clutter and often leaves the analyst guessing which level holds the most technical weight. This tool introduces the concept of "Collision Nodes." Instead of simply drawing every pivot, the algorithm scans higher timeframe data, identifies structural extremes, and clusters them together using a dynamic, adaptive mechanism.
When multiple higher timeframes project a pivot at the exact same price zone, a structural "Collision Node" is formed.
The utility lies in its objective strength grading: a node formed by the confluence of the 1-hour, 4-hour, and Daily charts mathematically demands more respect than a single localized swing point on a lower timeframe.
By filtering out the noise and only projecting nodes that meet a user-defined minimum strength threshold, the analyst is presented with a remarkably clean chart displaying only the most critical, high-liquidity zones.
Furthermore, the script automatically generates full trade execution parameters (Entry, Stop Loss, and multiple Take Profits) directly on the chart when a valid structural rejection occurs.
● 🔬 Methodology and Concepts
• Multi-Timeframe Pivot Extraction
The core engine relies on detecting localized extrema (Pivot Highs and Pivot Lows) over a user-defined lookback window. The script fetches these pivot values simultaneously from three higher timeframes plus the current chart's timeframe. To ensure absolute data integrity and prevent any future data leakage (repainting), the algorithm strictly requests historical, confirmed data using offset historical referencing.
• Volatility-Normalized Spatial Clustering
Once the pivots are extracted, the algorithm must determine if they "collide" or overlap. Because absolute price distance is irrelevant across different assets, the script uses a dynamic clustering mechanism normalized by the Average True Range (ATR).
A tolerance band is calculated by multiplying the current ATR by a user-defined coefficient.
If a newly discovered higher timeframe pivot falls within this exact tolerance band of an existing pivot cluster, it is merged into that cluster, and the cluster's "strength" rating is incremented.
If it falls outside the tolerance band, a new independent node is registered.
• Memory Management and Age Pruning
Financial markets possess a memory, but structural relevance decays over time. The script incorporates a memory management protocol that continually monitors the age of all registered nodes. If a node has not been tested or updated within a specific bar count limit, it is automatically pruned from the active array, ensuring that only highly relevant, modern liquidity pools are analyzed.
• Automated Signal Validation
A visual node is not a signal; it is an area of interest. The script validates trade signals by combining spatial location with price action. A valid signal requires the price to close inside the tolerance zone of a high-strength node, accompanied by a rejection candle (where the wick constitutes a significant percentage of the total candle range), and a structural close confirming the directional bias.
● 🎨 Visual Guide
• Collision Nodes
Teal Horizontal Lines: Represent bullish support nodes. The opacity of the line dynamically shifts based on the strength of the node (darker/more solid lines indicate higher timeframe confluence).
Red Horizontal Lines: Represent bearish resistance nodes. Like the bullish nodes, their visibility scales with structural strength.
Diamond Labels (◆×2, ◆×3): Attached to the end of the node lines, these labels explicitly display the node's strength rating. A "◆×3" label means three separate timeframes have confirmed a pivot at this exact mathematical level.
• Trade Execution Box
Dashed Blue Line: Indicates the exact Entry price upon signal confirmation.
Solid Red Line: Represents the dynamic Stop Loss, which is placed behind the collision node with an added ATR-based buffer to avoid premature liquidation.
Dashed Teal Lines (TP1, TP2, TP3): Represent calculated Take Profit levels projected automatically based on the user's defined Risk-to-Reward (RR) multipliers.
Red Background Fill: Visually maps the total risk zone between the Entry and the Stop Loss.
Teal Background Fill: Visually maps the total reward zone extending from the Entry up to the final Take Profit target.
• Real-time Dashboard
Located by default in the top right corner, this data table provides an instant summary of the market structure.
Bias: Displays the current active signal direction (LONG, SHORT, or NONE).
Active Nodes & Strengths: Lists the exact price levels of the nearest active bull and bear nodes, accompanied by visual progress bars displaying their respective strengths (Green for high strength, Yellow for medium, Red for low).
Trade Tracking: Displays the currently active Stop Loss and primary Take Profit levels if a trade configuration is locked on the chart.
● 📖 How to Use
Apply the indicator to your chart and set your three preferred higher timeframes in the settings (e.g., if trading on the 15-minute chart, you might select 1-Hour, 4-Hour, and Daily).
Observe the chart for the formation of high-strength Collision Nodes (look for ◆×3 or ◆×4 labels). These are your primary zones of interest.
Wait for price action to approach these nodes. Do not place blind limit orders.
Allow the script's internal logic to identify a structural rejection. When a valid rejection candle forms and closes at a node, a trade execution box will automatically populate on the chart.
Use the provided Entry, Stop Loss, and Take Profit lines to format your position sizing and manage the trade according to the mapped risk-to-reward parameters.
Optionally, link the script's advanced JSON webhook alerts to an external execution platform for automated trade routing.
● ⚙️ Inputs and Settings
• Core Settings
Pivot Lookback: The structural length required to confirm a swing high or low.
TF 1, TF 2, TF 3: The three higher timeframes used to scan for structural confluence.
Include Chart TF: Determines if the current chart's timeframe should also contribute to node strength.
Node Tolerance (×ATR): The spatial bandwidth used to cluster pivots together, measured as a multiplier of current volatility.
Min Node Strength: The minimum number of overlapping timeframes required for a node to be rendered on the chart.
• Filters
Require Rejection Candle: Enforces strict price action criteria, demanding that signals only fire if the candle displays a prominent rejection wick.
Min Wick % of Range: The exact percentage of the candle that must be composed of the wick to validate a rejection.
Max Node Age (bars): The duration a node remains active without being re-tested before being permanently purged from memory.
• Trade Tools
SL Buffer (×ATR): Adds a dynamic volatility buffer beyond the structural node to determine the absolute invalidation point.
TP1, TP2, TP3 (×SL Risk): The respective risk-to-reward multipliers used to dynamically project profit targets.
Lock Current Trade Levels: Freezes the visual risk/reward box on the chart until the trade hits either the final target or the stop loss, ignoring subsequent signals.
• Dashboard & Alerts
Show Dashboard: Toggles the visibility of the real-time data table.
Alert Actions: Customizable text fields allowing users to define specific JSON payload strings for long, short, and exit triggers.
● 🔍 Deconstruction of the Underlying Scientific and Academic Framework
The architectural foundation of this algorithm is heavily rooted in the Fractal Market Hypothesis (FMH), which posits that financial markets exhibit self-similar statistical structures across varying scales of time. In practical terms, a distribution pattern on a 5-minute chart mathematically resembles a distribution pattern on a Weekly chart. By aggregating pivot extrema from multiple independent time scales, this script exploits these fractal geometries to identify areas of harmonic resonance—price zones where liquidity pools overlap across different cohorts of market participants.
To resolve the spatial clustering problem, the system utilizes a volatility-normalized one-dimensional grouping algorithm conceptually akin to Density-Based Spatial Clustering of Applications with Noise (DBSCAN). Instead of utilizing fixed scalar distances (which fail as asset prices scale), the algorithm calculates an epsilon distance bounded by the Average True Range (ATR). This ensures that the clustering logic expands and contracts organically with market entropy. The ultimate output is a mathematically objective reduction of structural noise, isolating only the highest-density liquidity nodes that possess the greatest statistical probability of halting directional momentum.
⚠️ Disclaimer
All provided scripts and indicators are strictly for educational exploration and must not be interpreted as financial advice or a recommendation to execute trades. We expressly disclaim all liability for any financial losses or damages that may result, directly or indirectly, from the reliance on or application of these tools. Market participation carries inherent risk where past performance never guarantees future returns, leaving all investment decisions and due diligence solely at your own discretion. Penunjuk
Penunjuk
Penunjuk
EQH/EQL Liquidity Sweep | AlphaScript⚖️ EQH/EQL Liquidity Sweep
Detects clusters of equal highs (EQH) and equal lows (EQL) the resting-liquidity pools that price hunts and tracks exactly what happens to each one: swept, broken, or still active. Then it measures the real sweep rate so you can see your actual edge.
🎯 Why equal highs and lows matter
When price makes a high, pulls back, then makes another high at the same level, stops pile up just beyond that level — breakout orders, protective stops, resting liquidity.
The more times price taps the same level, the more orders accumulate there. Those pools are what larger participants hunt. This tool maps them automatically and then tells you whether each pool got raided or genuinely failed.
🔍 How pools form
The indicator finds swing highs and lows, then groups any that sit within a configurable tolerance of each other into a single pool.
A pool needs at least a minimum number of touches (default 2) to display. The pool line is drawn at the extreme of the cluster — the highest of the equal highs, or lowest of the equal lows — because that is where the stops actually rest. A small × marks each individual swing that built the pool, and the line thickness and badge show the touch count.
Each pool resolves in one of these ways:
⚡ SWEPT — price wicks through the pool extreme but the bar closes back on the original side. Stops were taken, but the level held on a closing basis. A liquidity raid.
💥 BROKEN — a bar closes through the pool extreme. The level genuinely failed — continuation, not a raid. Breaks are shown separately and never labeled as sweeps.
🛡️ Active — the pool has neither been swept nor broken and is still in play. Pools that go too long without resolving expire and are removed.
First qualifying event wins: one outcome per pool. If a bar both wicks through and closes through, it counts as a break — a close through the level can never be a sweep.
📊 Sweep-rate table | know your real edge
This is what separates the tool from every other equal-highs indicator: instead of just drawing levels, it measures what actually happens to them. The table breaks down every resolved pool by touch count (2 / 3 / 4+) and shows the real sweep and break percentages for each group — computed live from your own instrument, timeframe, and history.
That means you can answer the question that matters before taking a trade: do the pools you're watching actually get swept, or do they break? If 3-touch pools on your instrument sweep far more often than they break, that's a measured edge you can trade around. If 2-touch pools are a coin flip, you know to demand more confluence. The numbers come from the chart, not from a claim on a marketing page.
Only fully resolved pools are counted, active pools are excluded, so the rates can never be inflated by in-progress levels. The denominator is honest: what you see is what actually happened.
⚙️ Settings
-Swing lookback, and equal tolerance in ATR multiples (instrument-independent) or fixed ticks.
-Minimum touches to form a pool, maximum pool age, and how many active pools to track per side.
-Optional minimum wick penetration (ATR-based) to filter marginal sweeps. Does not apply to breaks.
-Optional "Strict Virgin Liquidity" mode: discards a forming level if price closes decisively beyond it before a second touch, so only levels that were never truly broken can pair. Off by default.
-Full display control: pool zones, touch badges, × touch markers, colors, line styles and widths, and how many resolved pools remain on the chart.
-Sweep-rate table with position options.
🔔 Alerts
Per-side sweep alerts (EQH and EQL), separate break alerts, and a combined "Any Pool Swept" alert. All alerts fire on the close of the event bar.
📌 Notes and limitations
-Designed for intraday and swing timeframes. Very low timeframes produce many small pools; adjust tolerance and swing lookback to suit.
-Detection uses standard swing pivots. A peak whose neighboring bar wicks slightly higher may not register as a separate pivot, so not every visual high becomes a pool — tune the swing lookback and tolerance to match how you read structure.
-The equal tolerance is the single most important setting. Too tight and genuine equal levels are missed; too loose and unrelated highs merge. Start moderate and adjust to your instrument.
-The sweep-rate table describes the pools on your loaded chart history. It is a measurement of what happened, not a prediction of what the next pool will do.
✅ Why no repaint
-Pivots are confirmed only after the swing lookback completes, and all pool detection runs on closed bars only. A sweep or break tag will never appear intrabar and then vanish.
-A pool is only evaluated for sweep or break once it has fully formed. A level still building cannot be resolved.
-No request.security() calls are used anywhere. All detection is chart-timeframe state. Penunjuk
ICT Everything Pro @SafarTradesICT Everything Pro
ICT Everything Pro consolidates multiple ICT time-based references into a single configurable indicator, allowing traders to monitor sessions, opening prices, key time markers, and higher timeframe reference levels without cluttering the chart or switching between multiple scripts.
Designed for intraday traders, the indicator centralizes the market timing concepts commonly used within the ICT methodology while providing extensive customization to match individual workflows.
Sessions
Display and customize the major trading sessions including Asia, London, AM, PM, London Close, and New York Lunch. Sessions can be displayed individually, highlighted using different styles, and limited to the current day or current week depending on your workflow.
CBDR, Asia & FLOUT
Visualize ICT session ranges including CBDR, Asia, and FLOUT. Each range supports independent visibility, colors, labels, and session definitions.
Time Markers
Display important ICT reference times using customizable vertical markers, including:
Midnight
London Open
New York Open
Equities Open
Each marker supports independent color, style, and width settings.
Opening Price Levels
Project important opening prices directly onto the chart, including:
Midnight Open
New York Open
Equities Open
Afternoon Open
RTH Open
Daily 50% Level
Each level supports customizable extensions, labels, colors, styles, and visibility.
Higher Timeframe Opening Levels
Optionally display Weekly and Monthly opening prices to maintain higher timeframe context while executing on lower timeframes.
Labels
Display day-of-week labels and a customizable chart label to improve chart organization and quickly identify trading sessions.
Customization
Every module can be configured independently, including:
Timezone selection
Session visibility
Session styles
Opening price extensions
Vertical line styling
Colors and labels
Historical display options
Higher timeframe opening levels
Intended Use
ICT Everything Pro is designed for traders who want a centralized ICT workspace without relying on multiple individual indicators. By combining session visualization, opening prices, higher timeframe references, and key time markers into a single configurable tool, it provides a cleaner and more efficient environment for market analysis and execution. Penunjuk

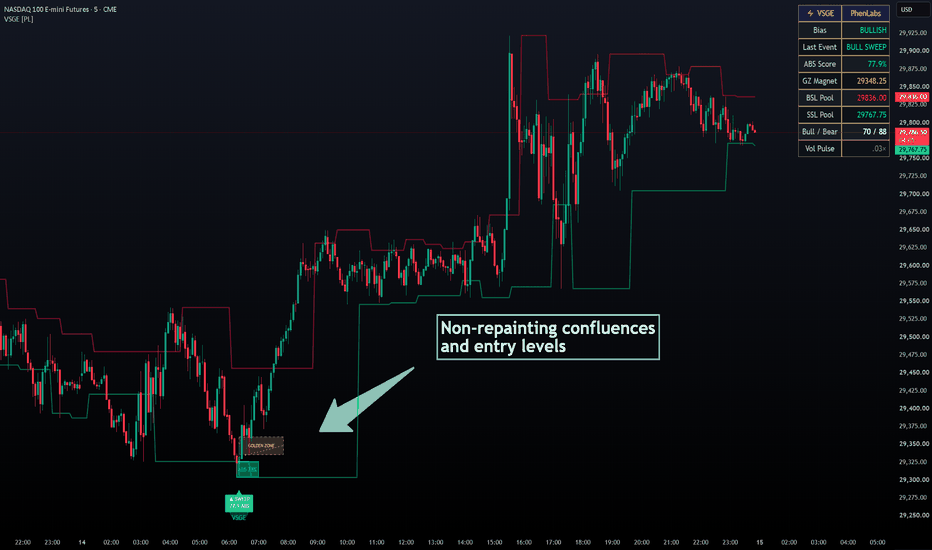

Volumetric Sweep Gravity Engine [PhenLabs]📊 Volumetric Sweep Gravity Engine
